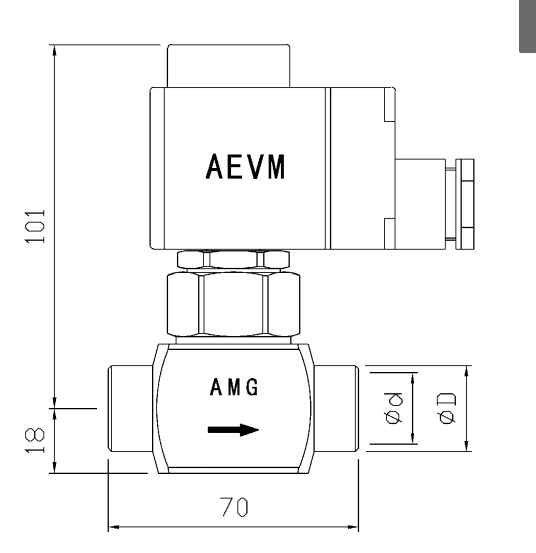

– The pilots AEVM are used as a shut-off solenoid pilot mounted directly over main valves AM1 or AM3. They can be also mounted on a housing valve EC type CVH in
an external line to control one or more AM or RAK valves.

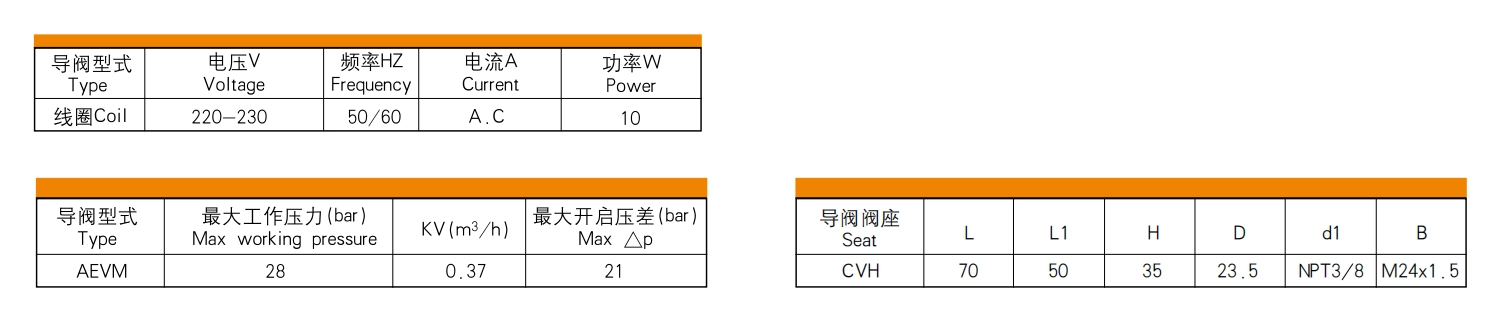

– The MOPD of the pilots AEVM-NC is 21 bar. AEVM-NO19 is bar.
– The standard coil NC and NO type is AC 220V-50/60Hz and they are supplied with a DIN 43650 plug.
– AEVM is a pilot valve which regulates the opening and closing of AM main valve. When installed on CVH seat, it can be used as an independent solenoid valve.
