Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics

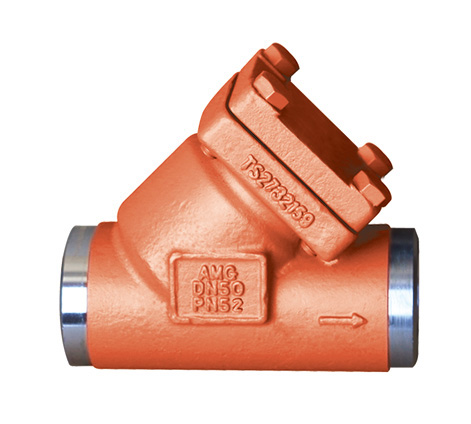

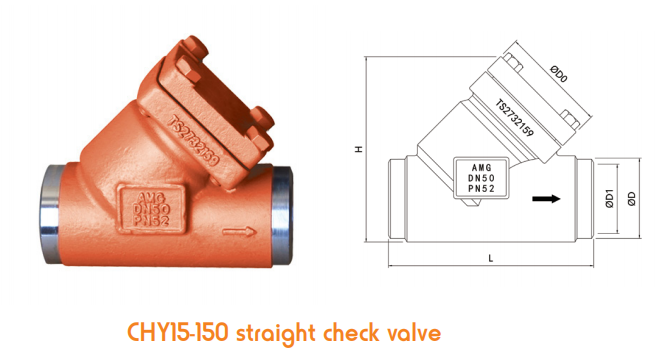

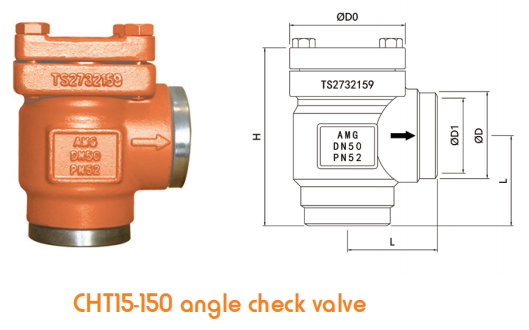

Check valves type CHY/CHT allow the mediumto flow in one direction and prevent it from flowing in the opposite direction. The valves are available in angle and straight-flow versions.
The valves are designed to open at very low differential pressures, allow favourable flow conditions and are easy to disassemble for inspection and service.
The valve cone has a built-in flexibility to ensure a precise and tight closing towards the valve seat. A well balanced dampening effect between the piston and the cylinder gives an optimal protection during low loads and against pulsations.
The valves meet all the requirements for industrial refrigeration equipment.
