Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics

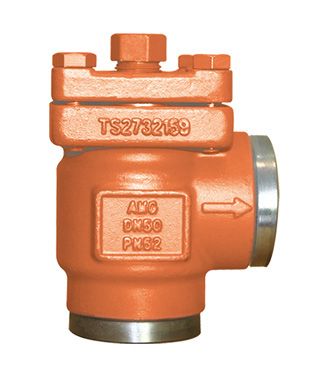

FIY/FIT strainers are used ahead of automatic controls, pumps, compressors etc., for initial plant start-up and where permanent filtration of the refrigerant is required. The strainer reduces the risk of undesirable system breakdowns andreduces wear and tear on plant components.

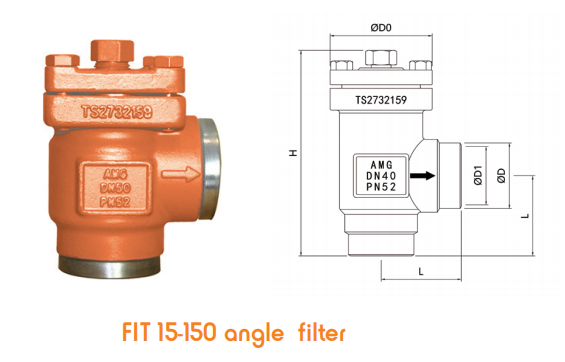

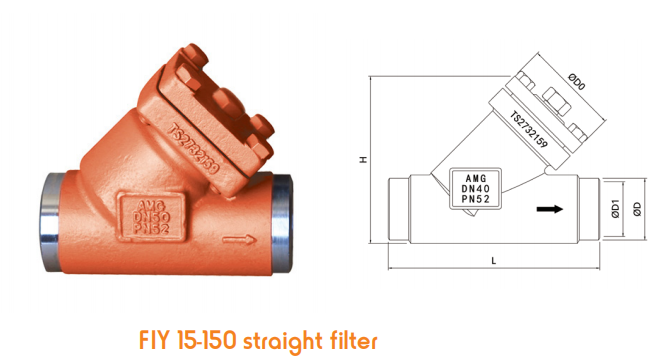

FIY/FIT strainers are a range of angleway and straightway strainers, which are carefully designed to give favourable flow conditions. The design makes the strainer easy to install, and ensures quick Strainer inspection and cleaning.
FIY/FIT strainers are equipped with ascreen mesh ofstainless steel, available in sizes 100,150,250 and 500μ(microns*),(Us 150,100,72,38 mesh*). Mesh is the number of threads per inch.μ(microns)is the distance between two threads(1μ=1/1000 mm).
