Technical parameters
Nominal pressure: 4.0MPa
Test pressure: 6.0MPa
Applicable temperature: -45℃ ~ +150℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics
FIAY/FIAT strainers are used ahead of automatic controls, pumps, compressors etc., for initial plant start-up and where permanent filtration of
the refrigerant is required. The strainer reduces the risk of undesirable system breakdowns and reduces wear and tear on plant components.

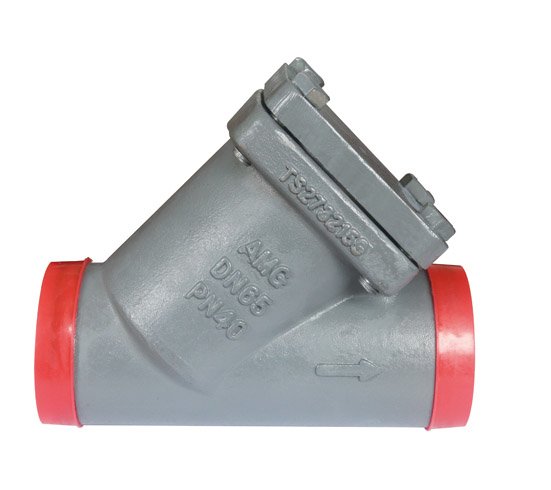

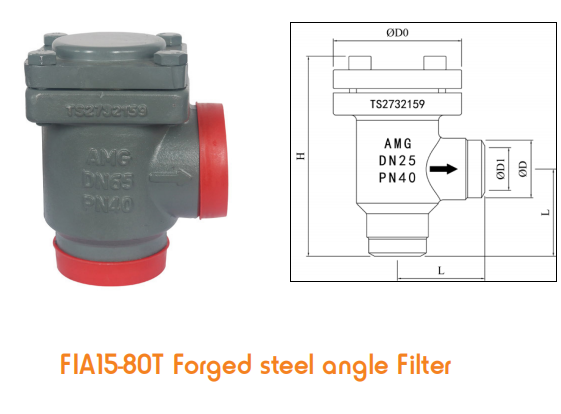

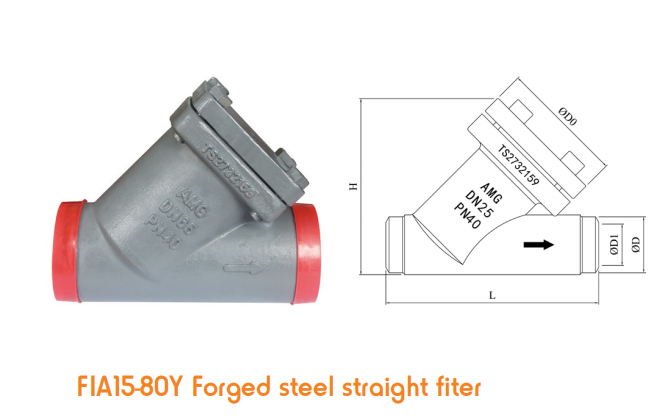

FIAY/FIAT strainers are a range of angleway and straightway strainers, which are carefully designed to give favourable flow conditions. The
design makes the strainer easy to install, and ensures quick Strainer inspection and cleaning.
FIAY/FIAT strainers are equipped with a screen mesh of stainless steel, available in sizes 100,150,250 and 500μ(microns*),(Us 150,100,72,38
mesh*). Mesh is the number of threads per inch.μ(microns)is the distance between two threads(1μ=1/1000 mm).
