Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics

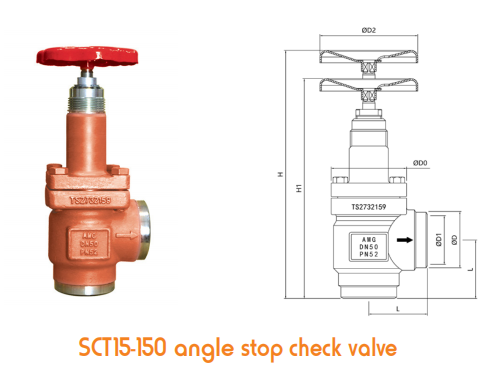

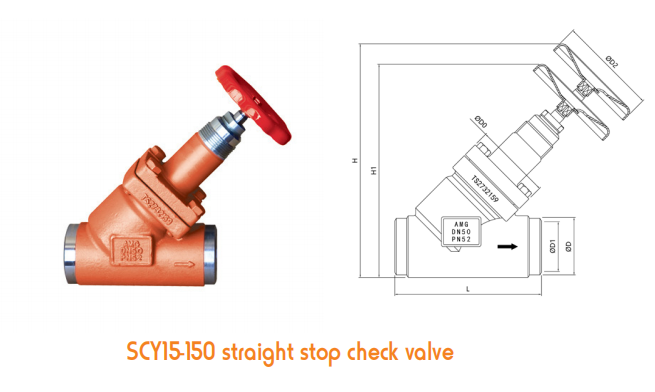

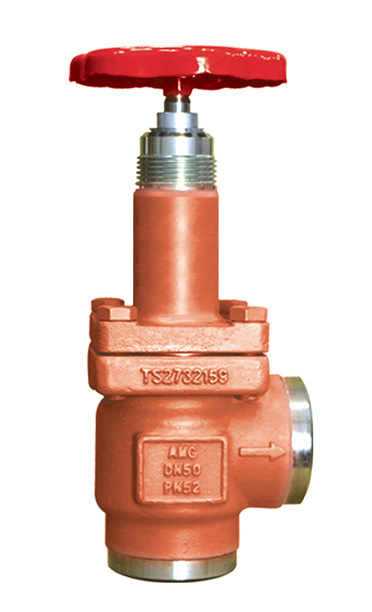

Stop-check valves type SCY/SCT allow the medium to flow in one direction and prevent it from flowing in the opposite direction. The valves are available in angle and straight-flow versions and have an integrated shut-off function.
The valves are designed to open at very low differential pressures, allow favourable flow conditions and are easy to disassemble for inspection and service.
The valve cone has a built-in flexibility to ensure a precise and tight closing towards the valve seat. A well balanced dampening effect between the piston and the cylinder gives an optimal protection duringlow loads and against pulsations.
The valves meet all the requirementsfor industrial refrigeration equipment.
