Technical parameters
Nominal pressure:5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -60℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics
SG-A sight glasses are designed to meet all industrial refrigeration application requirements. SG-R type sight glasses are designed for visual inspection of the refrigerant status in the system, as well as for indicating the liquid level in the receiver or the oil level in the compressor crankcase.

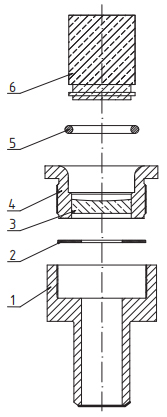

The sight glasses are a completely disassembled product, ensuring high repairability.
