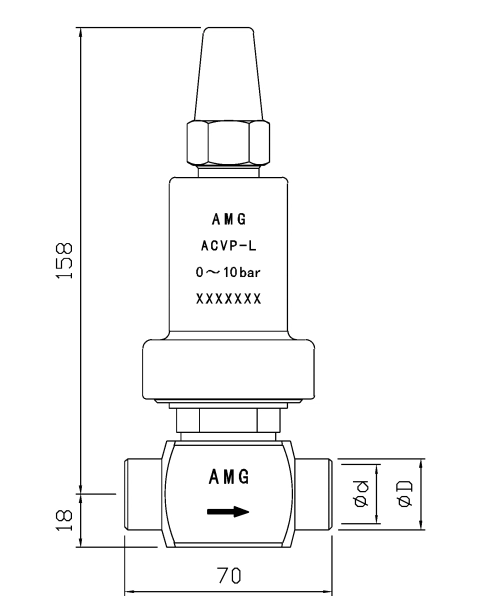

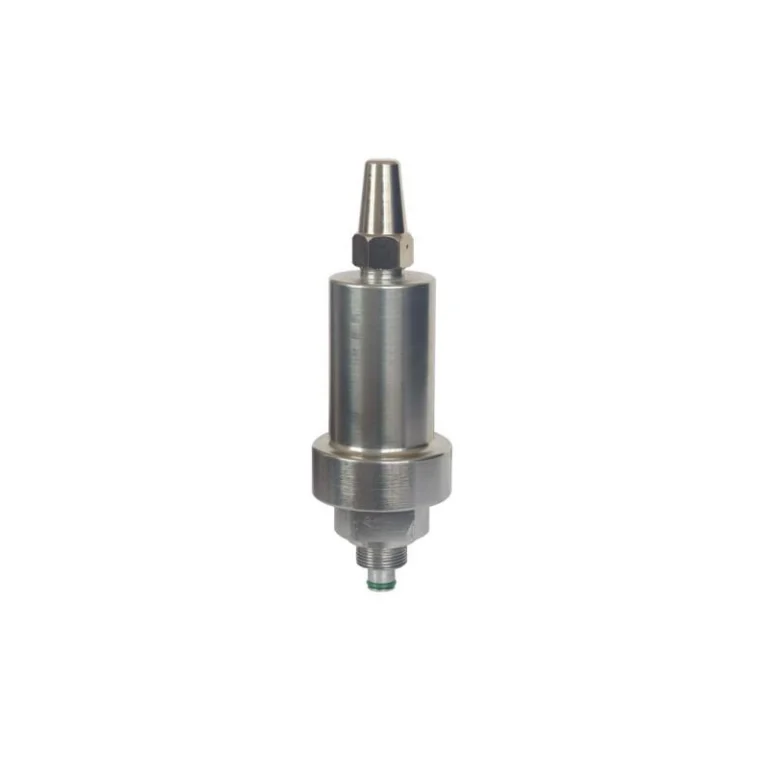

-The Pilots ACVP-L are used as constant pressure regulators, mounted directly over main valves AM1 or AM3. They can be also mounted on a housing valve EC type CVH in an external line to control one or more AM or RAK valves.

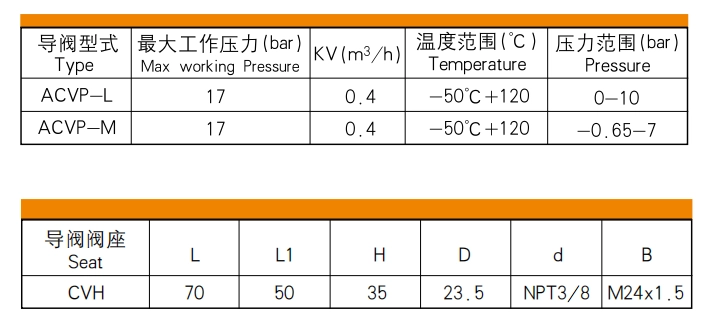

-The Pilots ACVP-L & ACVP-M both working in lower pressure, but in different range of regulation:ACVP-L: 0 Bars to l0 Bars ACVP-M:-0.65 Bars to 7 Bars.
-Turning the regulating spindle clockwise to increase the opening pressure of the pilot,(thus the evaporating pressure and temperature), and they decrease
when we tum the spindle anticlockwise.
-Pilot valves are used to keep the inlet pressure of AM main valve constant. The low-pressure ACVP-L should avoid vibration.
-When ACVP is installed on the CVH seat, it can be used as either a separate constant pressure valve or a safety pressure valve.
