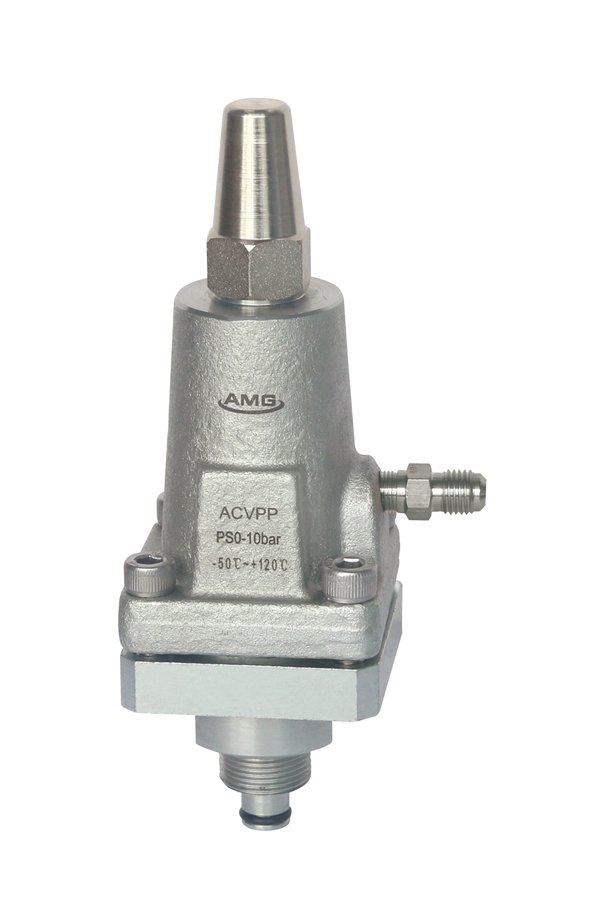

Pressure Control Pilots ACVPP

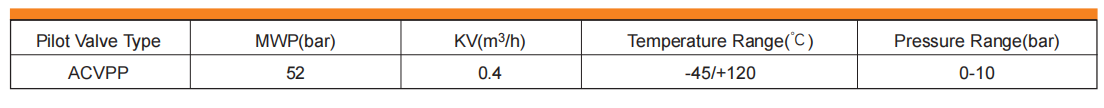

Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics
Pilot valves are intended for mechanical control of a main valve and are ready for direct installation in the top cover of the main valve AM3,AICS3.When a ACVPP is mounted in a ACVH housing, it can be used as a separate constant-pressure valve or a pressure relief valve (e.g. to prevent hydraulic over pressure in an entrapped liquid).
ACVPP pilot valve is used for maintaining a constant differential pressure between the ACVPP valve reference pressure connection and the main valve inlet pressure.
