Technical parameters
Nominal pressure: 4.0MPa
Test pressure: 6.0MPa
Applicable temperature: -45℃ ~ +150℃
Applicable medium: Ammonia
Characteristics

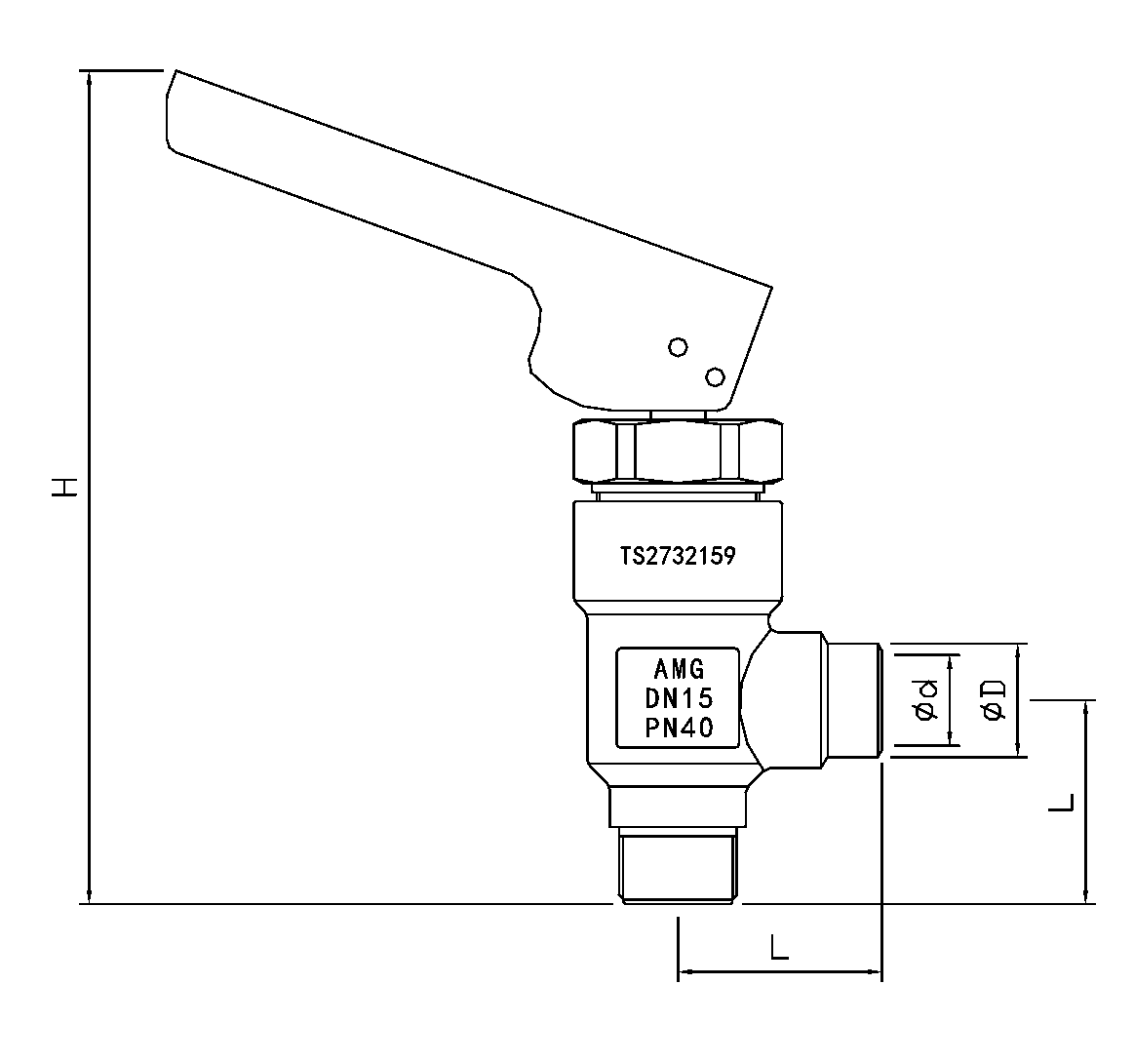

AQDV is a shut-off valve, designed particularly for draining oil from systems containing refrigerant (ammonia) under pressure.
The valve will close immediately on release of the handle, thus protecting user and environment against unnecessary

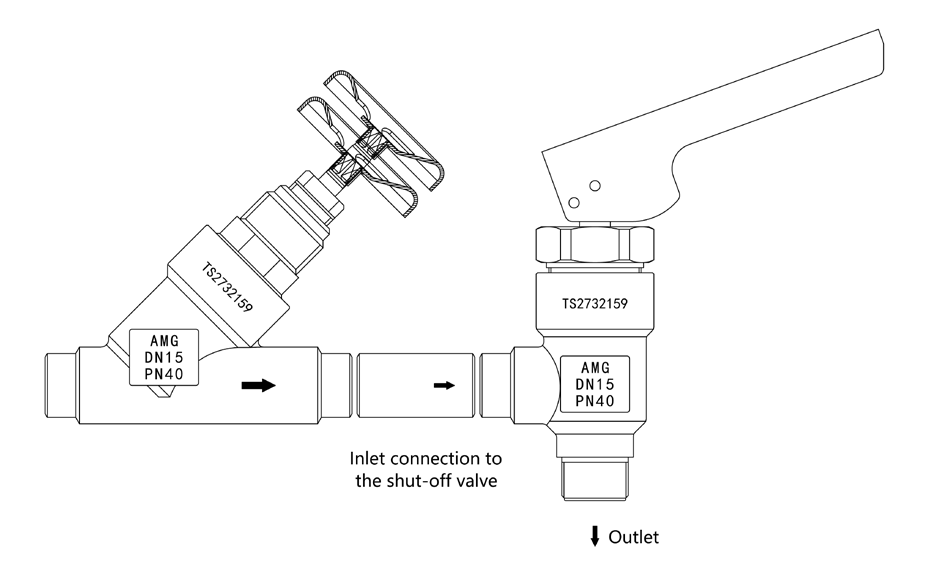

refrigerant leaks. In order to prevent hydraulic pressure building up between the stop valve and the AQDV an integral relief device is included as part of the cone arrangement, which will open at approx 16 bar.
AQDV is designed to meet the safety demands specified by national and international authorities within industrial refrigeration.
