Technical parameters
Nominal pressure:4.0MPa
Test pressure: 6.0MPa
Applicable temperature: -100℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics

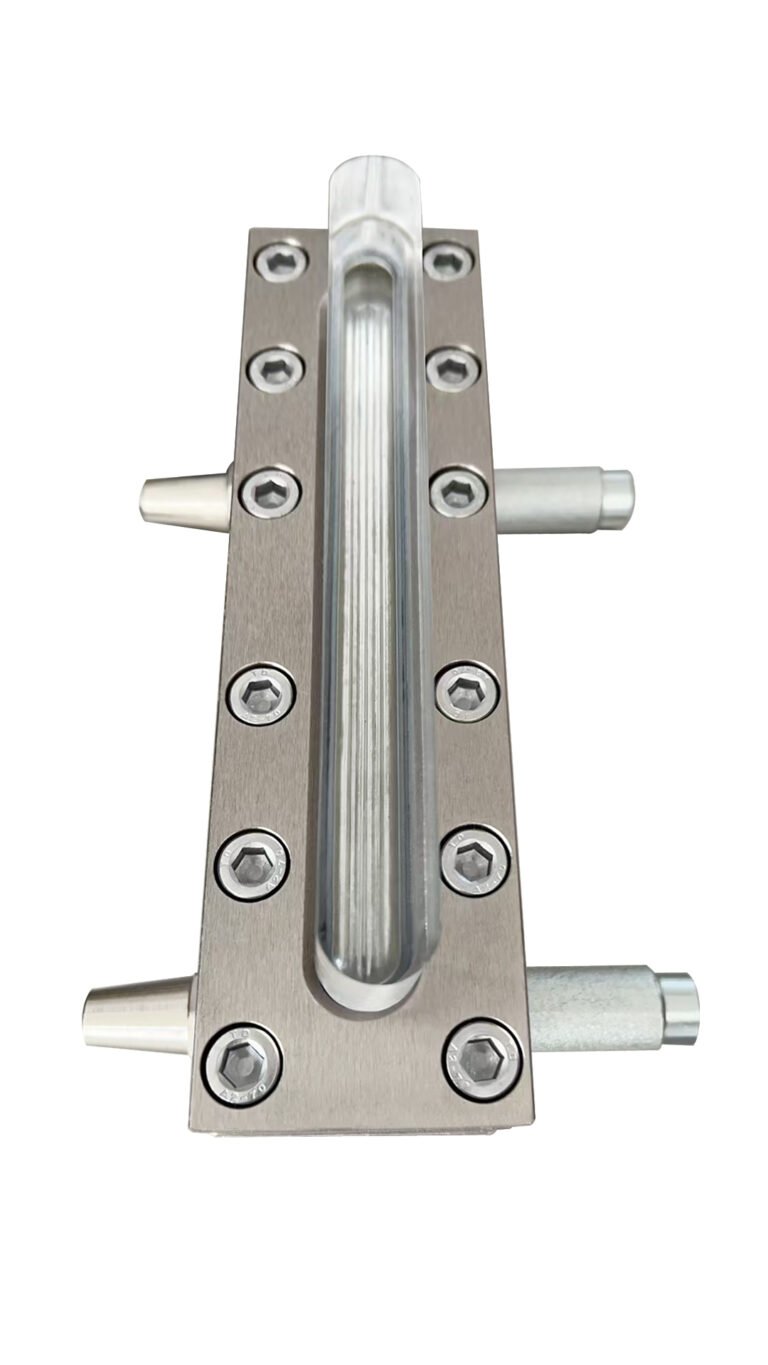

LLG-A are sight glasses in ductile steel which meets the strictest requirements on industrial and marine refrigeration installations.

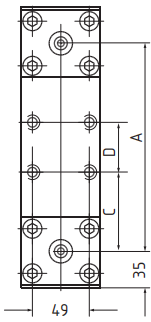

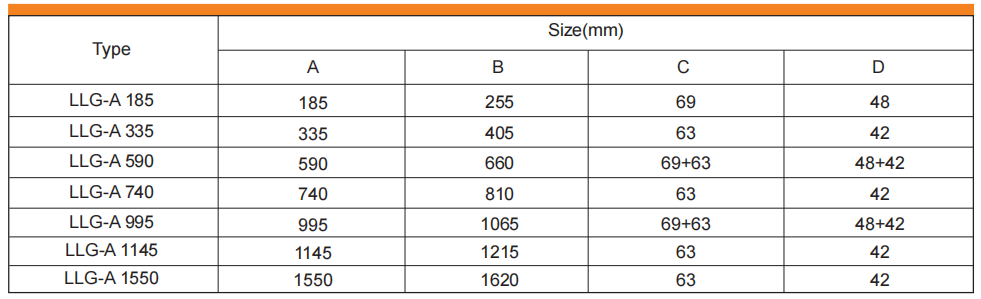

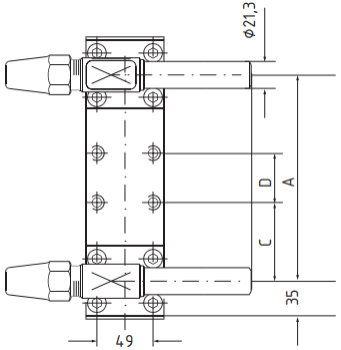

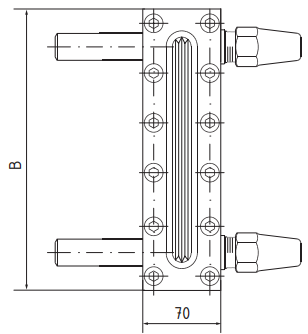

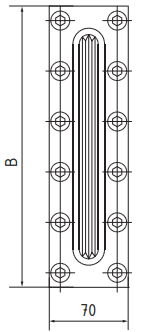

The range of sight glasses is based on 3 basic sight glasses: LLG 185,LLG 335 and LLG 740.The other standard lengths are combined by using variations of basic glass lengths.

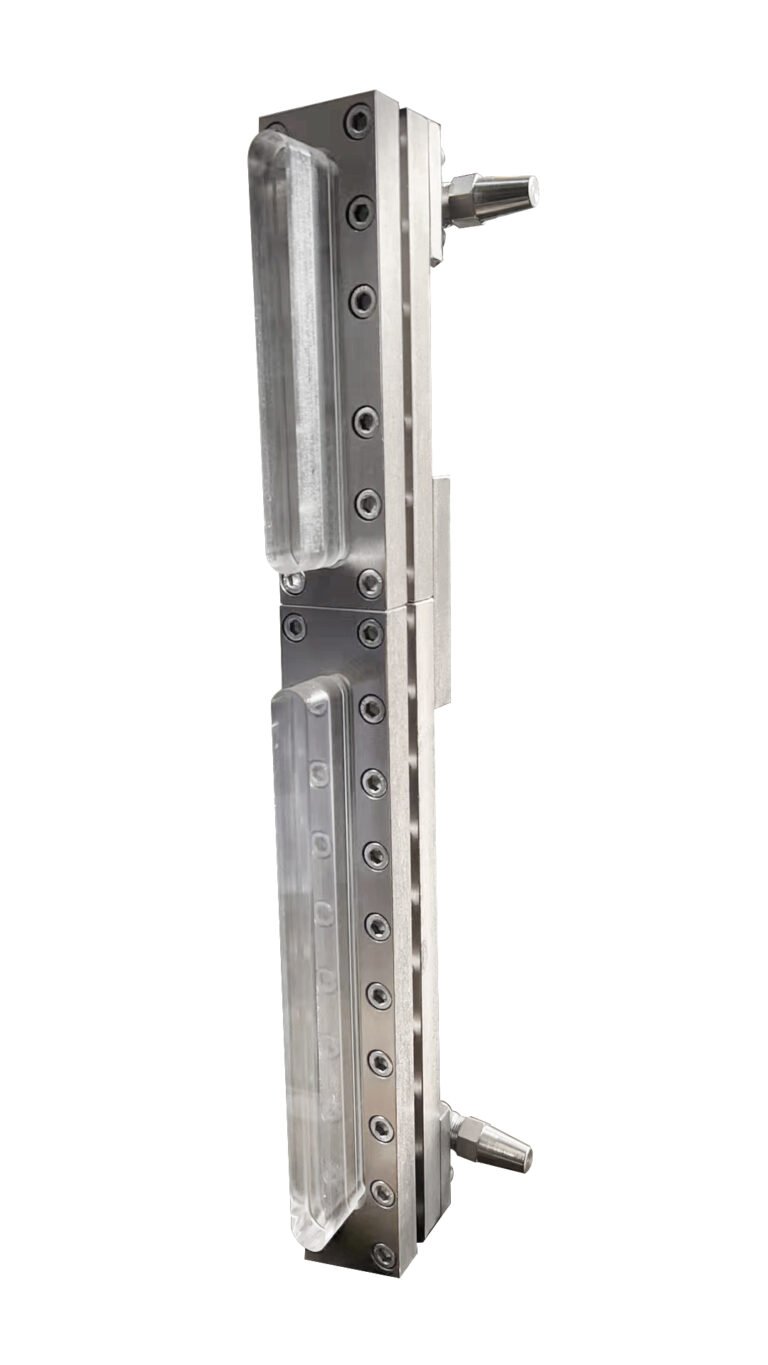

LLG 590,LLG 995,LLG 1145 and LLG 1550 are joined together by 2 basic LLG’s by means of a connector. The connector holds the two basic glasses together by means of screws and guiding pins, which ensures a rigid construction.
LLG produce sufficient flow areas to secure the highest possible degree of synchronous operation, and have a specially hardened reflection glass for quick reading. The front and the base frame are mounted together from the front with countersunk allen screws.
This ensures easy insulation on site as well as easy inspection and service, if any.
All sight glasses are equipped as standard with a built-in safety system(non return device). If a glass is damaged, the pressure of the refrigerant will activate the safety system and refrigerant loss will be limited to an absolute minimum.
