Technical parameters
Nominal pressure: 2.5MPa
Test pressure: 3.75MPa
Applicable temperature: -45℃ ~ +150℃
Applicable medium: Ammonia, Freon, CO₂, etc.

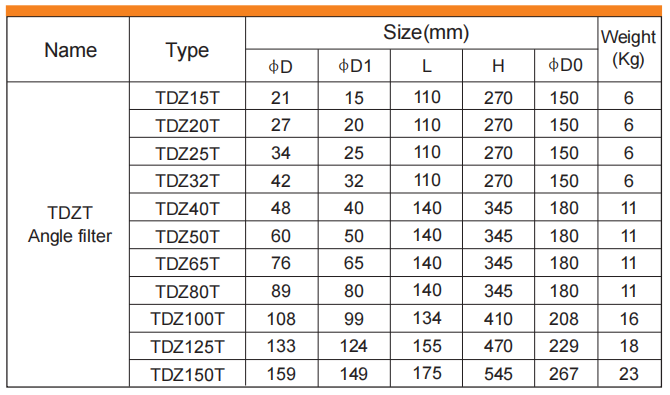

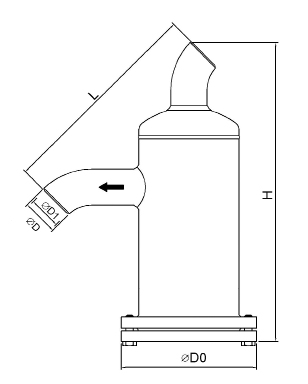

TDZ15-125-T Angle Filter
The TDZ filter is available in two connection configurations: angle type and straight type. With a large volume and
extensive filtration area, the TDZ filter requires less frequent cleaning. It is suitable for installation before or after pumps, as well as ahead of compressors.
The filter screens and plates are made of stainless steel, featuring rust-proof characteristics, long service life and easy
cleaning.
The square-hole filter mesh provides large flow area with minimal pressure drop, while the filter element allows
convenient installation and maintenance.
Available stainless steel filter meshes include four specifications: 38 mesh (500μm), 72 mesh (250μm), 100 mesh (150μm) and 150 mesh (100μm).
General guidelines for filter mesh selection:
For liquid lines – 38 mesh (500μm) before pumps, 100 mesh (150μm) after pumps, 150 mesh (100μm) before
electronic expansion valves, 38 mesh (500μm) before general automatic control components, and 72 mesh (250μm)
before sensitive automatic control components.
For suction lines – 72 mesh (250μm) before screw compressors and 100 mesh (150μm) before piston compressors.
Reference criteria for cleaning or replacing filter screens: ΔP>0.5 bar for liquid lines, ΔP>0.05 bar for suction lines, with the maximum allowable pressure differential of 1 bar for the filters.

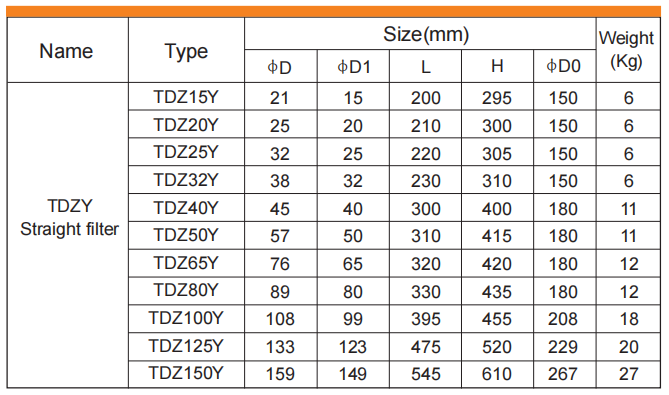

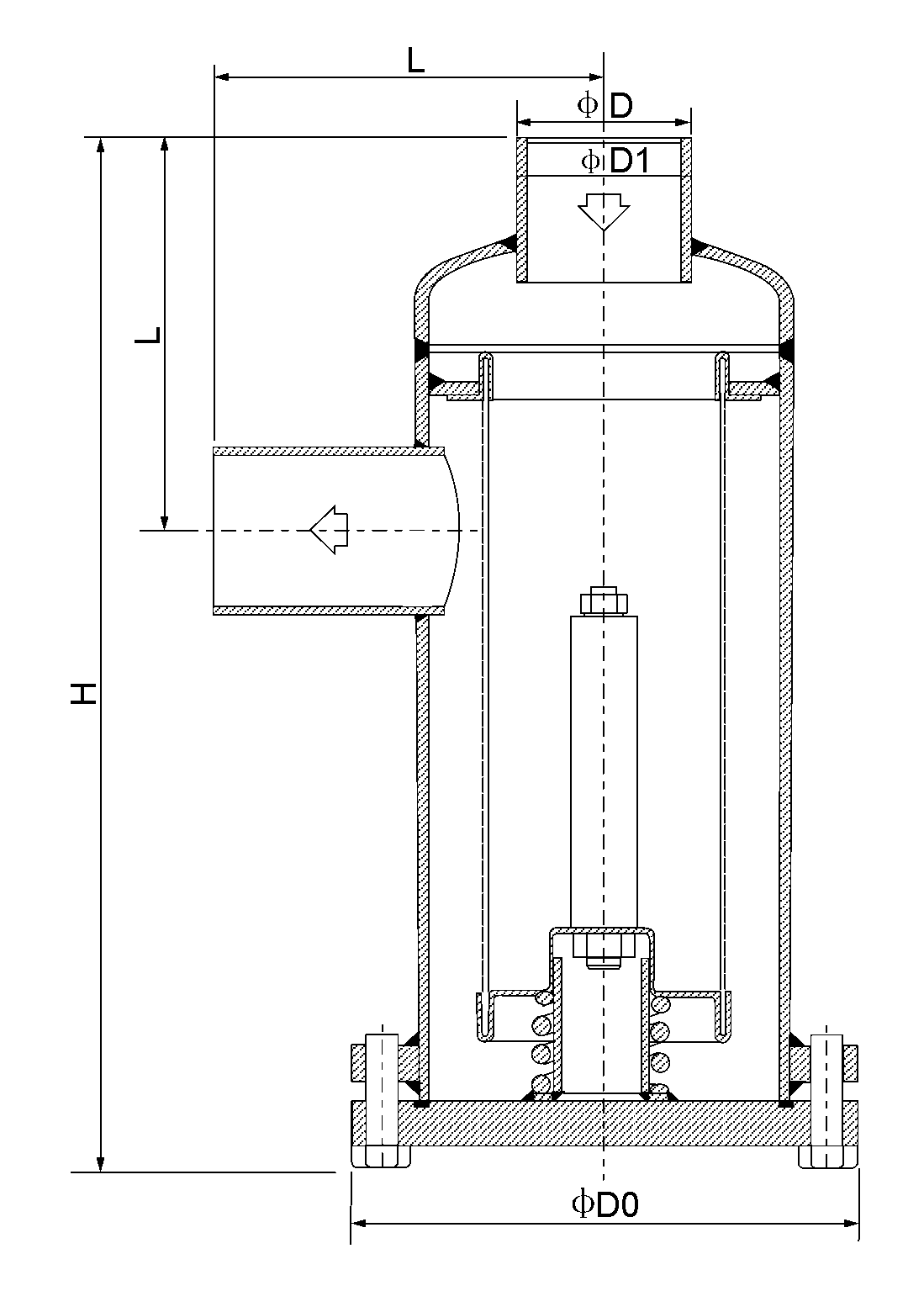

TDZ15-125-Y straight Filter
