Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO₂, etc.
Characteristics

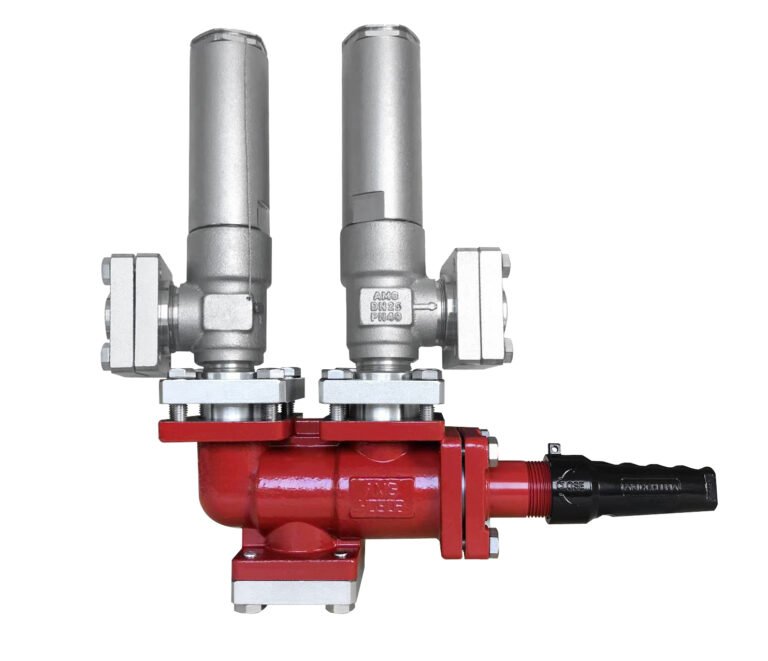

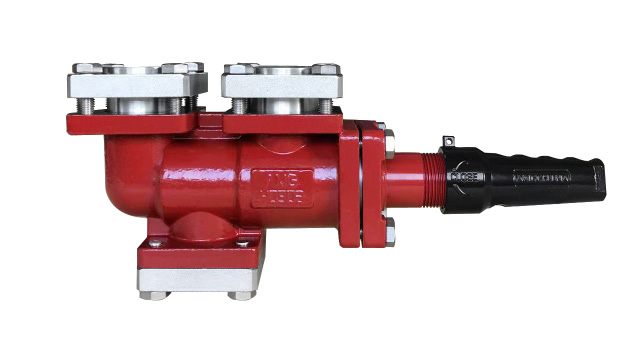

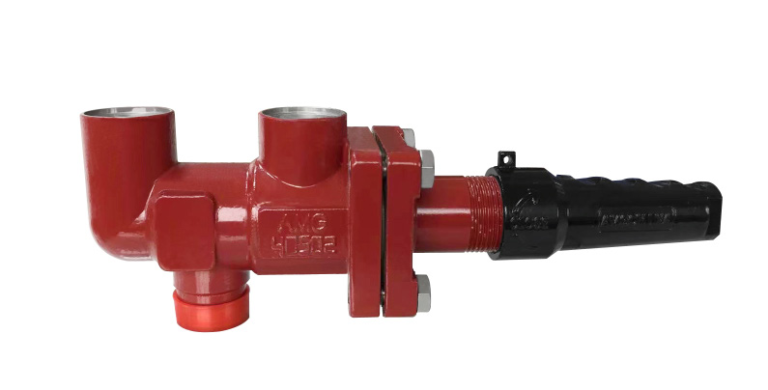

ADSV are 3-way valves, which are designed to meet all industrial refrigeration application requirements. ADSV valves are designed specifically for use with double safety valve systems.
The valves are designed to give favourable flow characteristics and are easy to dismantle for servicing. The valve cone is designed to ensure perfect closing, even with minimum torque the valve will close effectively. All valves are equipped with vented cap and nipple/flange connections, which pernit easy inspection or replacement of safety valves.
